250V 10A Fusible RYD Thermal Cutoff Fuse for Microwave oven with CCC, TUV, ROHS
Quick Detail:
| Certificate | Rated Voltage | Rated Current |
| UL | 120V | 15A |
| TUV | 250V | 10A/15A |
| PSE | 250V | 10A/15A |
| EK | 250V | 10A |
| CCC | 250V | 10A/15A |
Dsecription:
RYD Thermal Cutoff Fuse is a small and strong Fusible Heat Protector. It has the function of detecting abnormal temperature and cutting off circuit. When the temperature of household or industrial electrical appliances rises abnormally, it can cut off the circuit quickly and timely to prevent fire disaster. It uses thermosensitive granule(organic chemicals) as heat sensitive material. Its rated operating temperature is 96℃ ～ 240℃ and it can be used for all kinds of products with rated current of 0.5A ～ 15A. RYD Thermal Cutoff Fuse has passed CCC, TUV, ROHS.
It is mainly used in small household appliances such as electric iron, hair dryer, electric stove, microwave oven, refrigerator, rice cooker, electric heater, coffee pot, sandwich stove,etc.
Specifications:
1. Dimensional Outline
 |
| Specification and Standard(mm) |
| A | B | C | D | E |
| 25±1 | 11.5±1 | 35±1 | Φ1±0.05 | Φ4.0±0.1 |
BOM
| Part | Material |
| Lead A | Copper |
| Lead C | Copper |
| Shell | Brass |
| Sealing | Epoxy Glue |
2. Structure and Operating Theory
|
| RYD Thermal Fuse is to put thermosensitive granule (organic chemicals) material into the metal shell for overheating cut off.It can cut off large current (rated current) of 10A or 15A. |
 |
3.Rated Form
| Model | TF ℃ | TH ℃ | TM℃ | |
UL
USA | TUV
Germany | PSE
Japan | EK
South Korea | CCC
China | SGS
Environmental Protection |
| RYD73 | 73 | 53 | 150 | | | ● | | | ● |
| RYD77 | 77 | 57 | 150 | ● | ● | ● | ● | ● | ● |
| RYD84 | 84 | 60 | 150 | | ● | ● | ● | ● | ● |
| RYD98 | 98 | 78 | 150 | ● | | ● | ● | | ● |
| RYD99 | 99 | 78 | 150 | | ● | ● | ● | ● | ● |
| RYD104 | 104 | 86 | 150 | ● | ● | ● | ● | ● | ● |
| RYD105 | 105 | 80 | 150 | | | ● | ● | | ● |
| RYD110 | 110 | 85 | 150 | ● | ● | ● | ● | ● | ● |
| RYD115 | 115 | 95 | 150 | | | ● | ● | | ● |
| RYD117 | 117 | 95 | 150 | ● | ● | ● | ● | ● | ● |
| RYD121 | 121 | 95 | 159 | | ● | ● | ● | ● | ● |
| RYD125 | 125 | 105 | 179 | | | ● | ● | | ● |
| RYD128 | 128 | 106 | 179 | ● | ● | ● | ● | ● | ● |
| RYD133 | 133 | 117 | 189 | ● | ● | ● | ● | ● | ● |
| RYD139 | 139 | 119 | 189 | | | ● | ● | | ● |
| RYD142 | 142 | 119 | 189 | | ● | ● | ● | ● | ● |
| RYD144 | 144 | 119 | 189 | ● | | ● | ● | | ● |
| RYD152 | 152 | 128 | 205 | | | ● | ● | | ● |
| RYD157 | 157 | 128 | 205 | | ● | ● | ● | ● | ● |
| RYD165 | 165 | 142 | 205 | | ● | ● | ● | ● | ● |
| RYD169 | 169 | 146 | 205 | | | ● | ● | | ● |
| RYD172 | 172 | 146 | 240 | ● | ● | ● | ● | ● | ● |
| RYD184 | 184 | 164 | 240 | | ● | ● | ● | ● | ● |
| RYD192 | 192 | 164 | 240 | | ● | ● | ● | ● | ● |
| RYD200 | 200 | 189 | 240 | | | ● | ● | | ● |
| RYD216 | 216 | 189 | 300 | ● | ● | ● | ● | ● | ● |
| RYD227 | 227 | 190 | 400 | | ● | ● | ● | ● | ● |
| RYD228 | 228 | 190 | 400 | | | ● | ● | | ● |
| RYD229 | 229 | 190 | 400 | | | ● | ● | | ● |
| RYD240 | 240 | 200 | 450 | ● | ● | ● | ● | ● | ● |

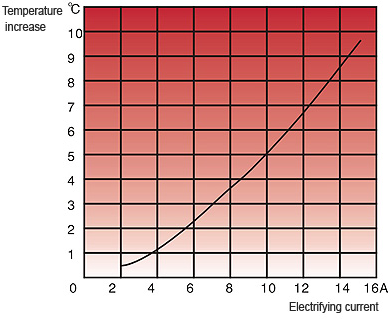

4.Characteristic Test
Applications:
● Electric iron
● Hair dryer
● Electric stove
● Microwave oven
● Fefrigerator
● Rice cooker
● Electric heater
● Coffee pot
● Sandwich stove
Competitive Advantages:
● Small size
● Easy to install
● Fast reaction
● High precision and stability
● High quality with low cost
● RoHS compliant
